Self-priming twin impeller jet pumps

Speroni’s self-priming twin impeller cast iron jet pump range are built to withstand the harsh Australian conditions. With high quality Italian engineering going into each pump, the cast iron construction, twin Noryl impellers and the custom-made for Australian conditions 240vlt single phase motor will ensure these pumps will meet your pumping requirements. Suitable for agriculture, industrial and residential applications.

Available in both shallow well and deep well configurations.

Pump Configuration Options Include:

Constant Pressure System:

  • Constant pressure system includes your choice of either a PresFlo pressure controller or upgrade to the PresFlo Multi for greater controller functionality.
  • Dry Run protection with auto reset
  • Anti Cycling protection
  • Programmable start pressure (PresFlo Multi)
  • Programmable max current (PresFlo Multi)
  • Plug n Play electrical leads

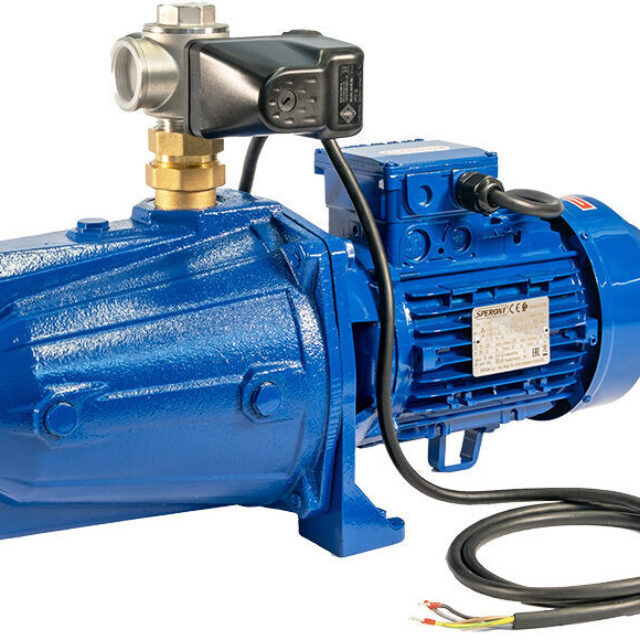

Pressure System:

  • Pressure Switch systems include:
  • 25mm Brass 5-way tee
  • Pressure Gauge
  • 30-50psi Pressure Switch IP44
  • Plug n Play electrical leads

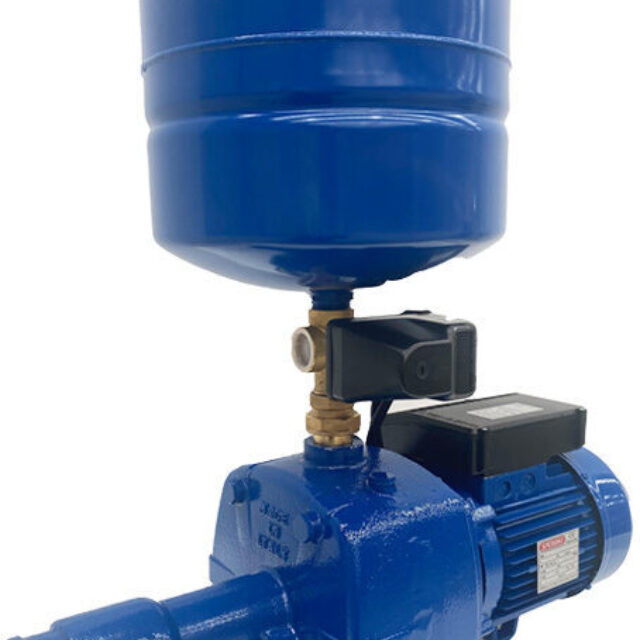

  • Wide range of 10bar pressure vessels available

Specifications

  • Power supply: Single Phase 240V 50Hz 2P
  • Motor Insulation Class F
  • Motor Protection IP55
  • Motor Size:
    • CAM/APM150 - 1.1kW
    • CAM/APM200 – 1.5kW
  • Max Liquid temperature: 35⁰C
  • Maximum Ambient temperature: 40⁰C
  • Maximum suction lift:
    • APM Series Deep Well – up to 50mts
    • CAM Series Shallow Well – up to 9mts
  • Plug & Play electrical connections

Applications

  • Stock Water
  • Water Transfer
  • Dam fill and transfer
  • Tank fill
  • Irrigation
  • Agriculture irrigation
  • Domestic irrigation
  • Commercial irrigation
  • Process applications

Materials

  • Cast Iron body and Ejector
  • Noryl Impellers
  • Noryl Diffuser
  • AISI304 Stainless Steel Shaft
  • Ceramic/Graphite/NBR Mechanical Seal

Market Sectors

  • Agriculture
  • Irrigation
  • Commercial

Models

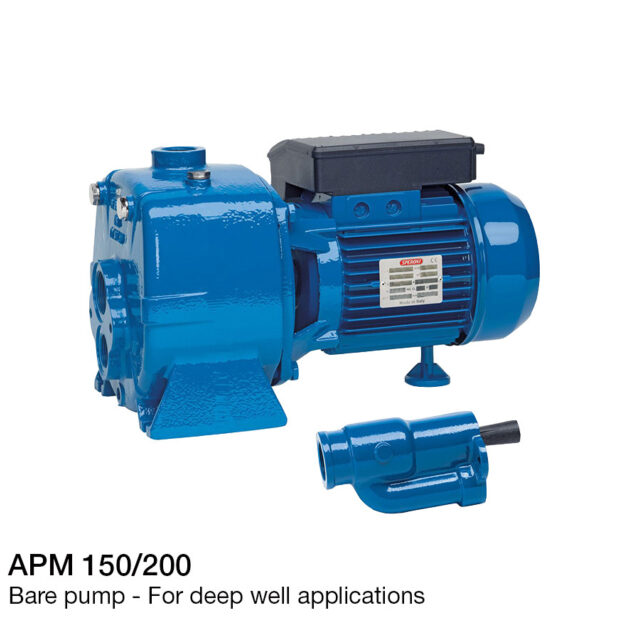

  • APM Series: Deep well

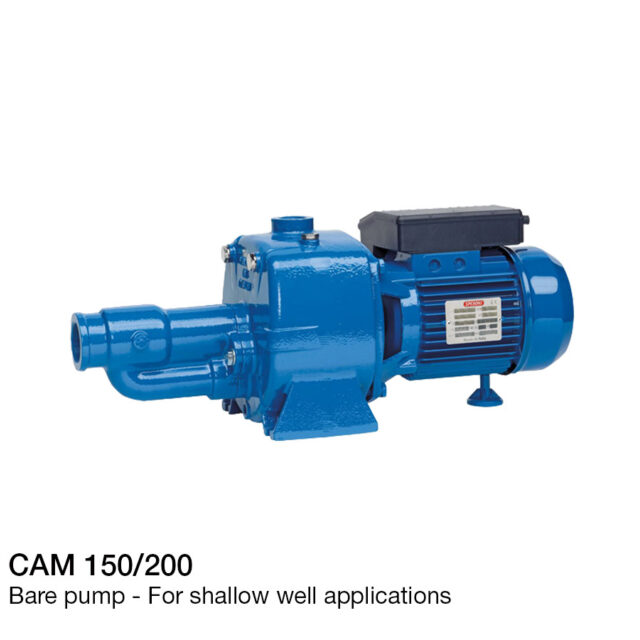

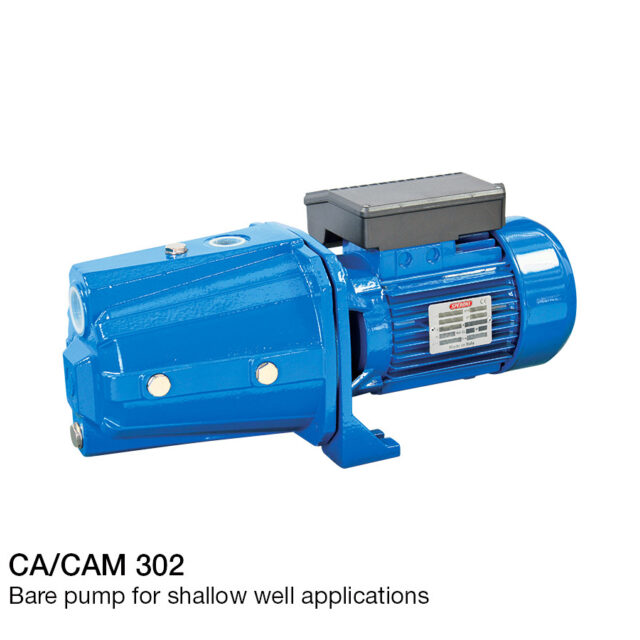

  • CAM Series: Shallow well
