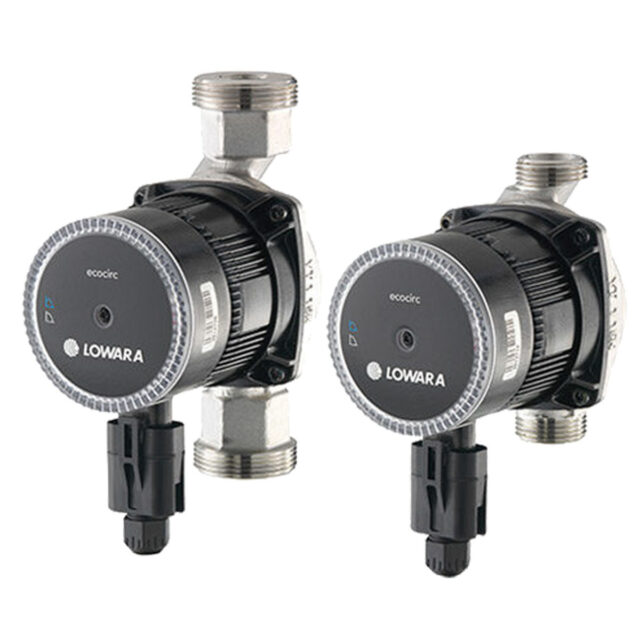

Lowara : Ecocirc Basic Circulator
High efficiency single wet rotor circulators with fixed or variable speed and threaded connections
The Ecocirc is the latest generation high efficiency circulator based on the proven shaftless spherical motor design with ECM technology and permanent magnets. This design combines high efficiency, low noice and an affordable price.
The new generation has improved efficiency and fullfill the requirements of ErP 2015. It also has a high magnetite resistance thanks to the new Anti-Block technology.
Specifications
- Delivery: up to 3.20 m³/h
- Head: up to 6 m
- Power supply: both single and three-phase 50 Hz
- Power: 23 and 42 watts
- Maximum operating pressure: 10 bar
- Temperature of pumped liquid: from -10 °C to 110 °C
Materials
- Cast Iron
- "N" range available in 304 Stainless steel
Market Sectors
- Residential-HVAC
- Commercial-HVAC
Models
- Ecocirc Basic and Ecocirc Basic N
